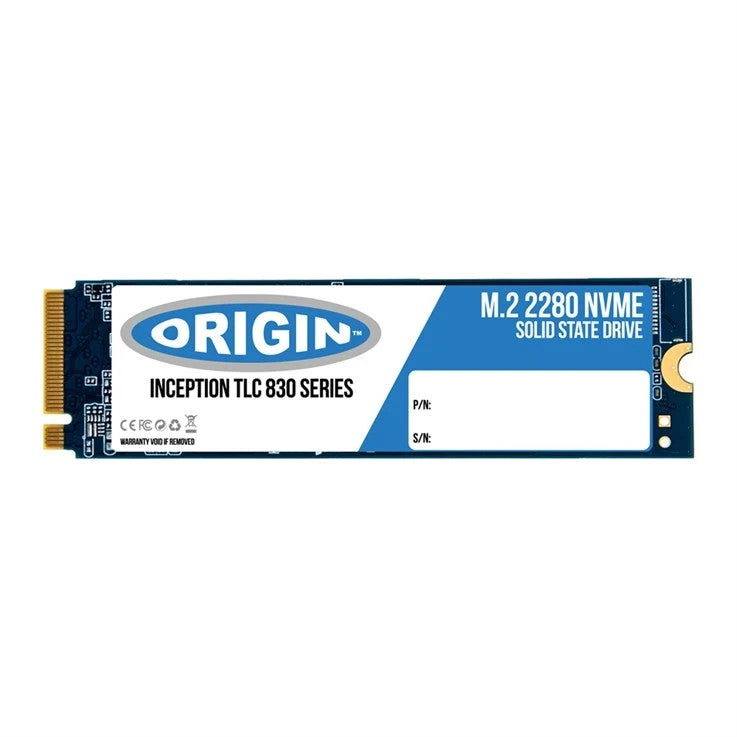

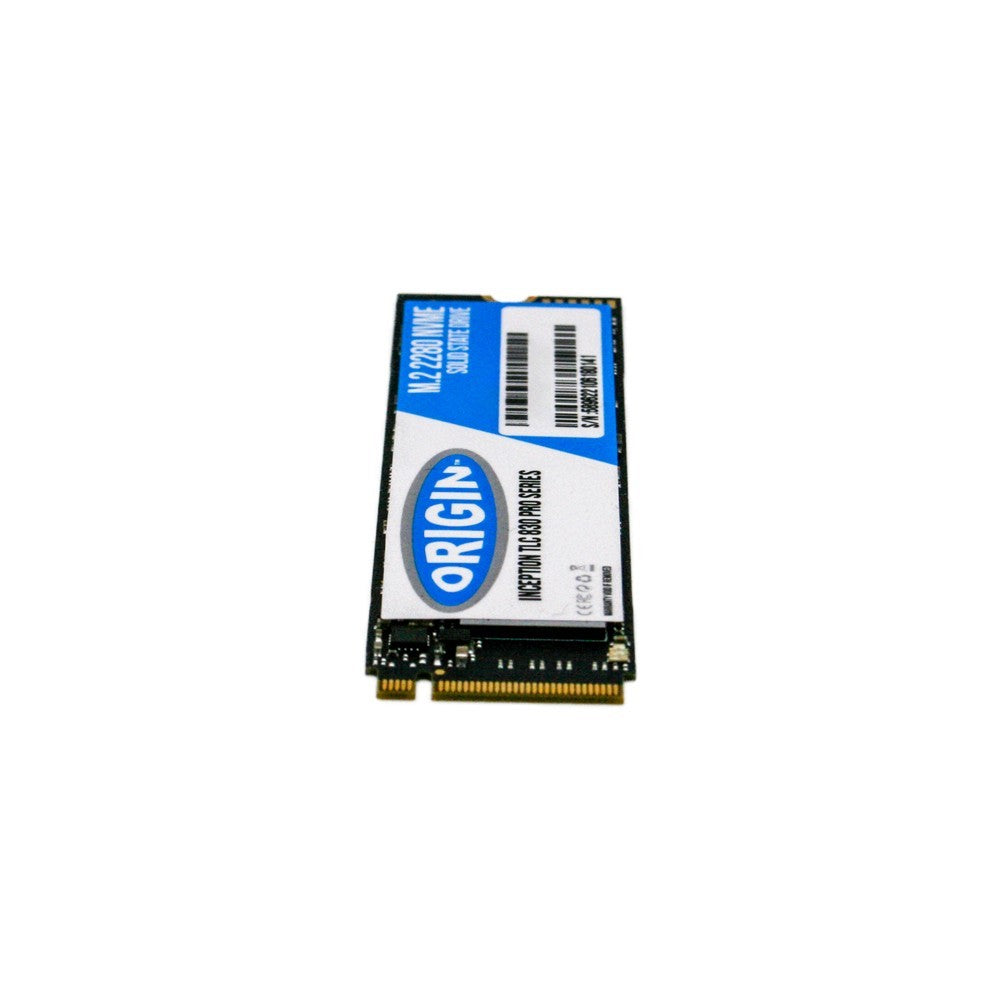

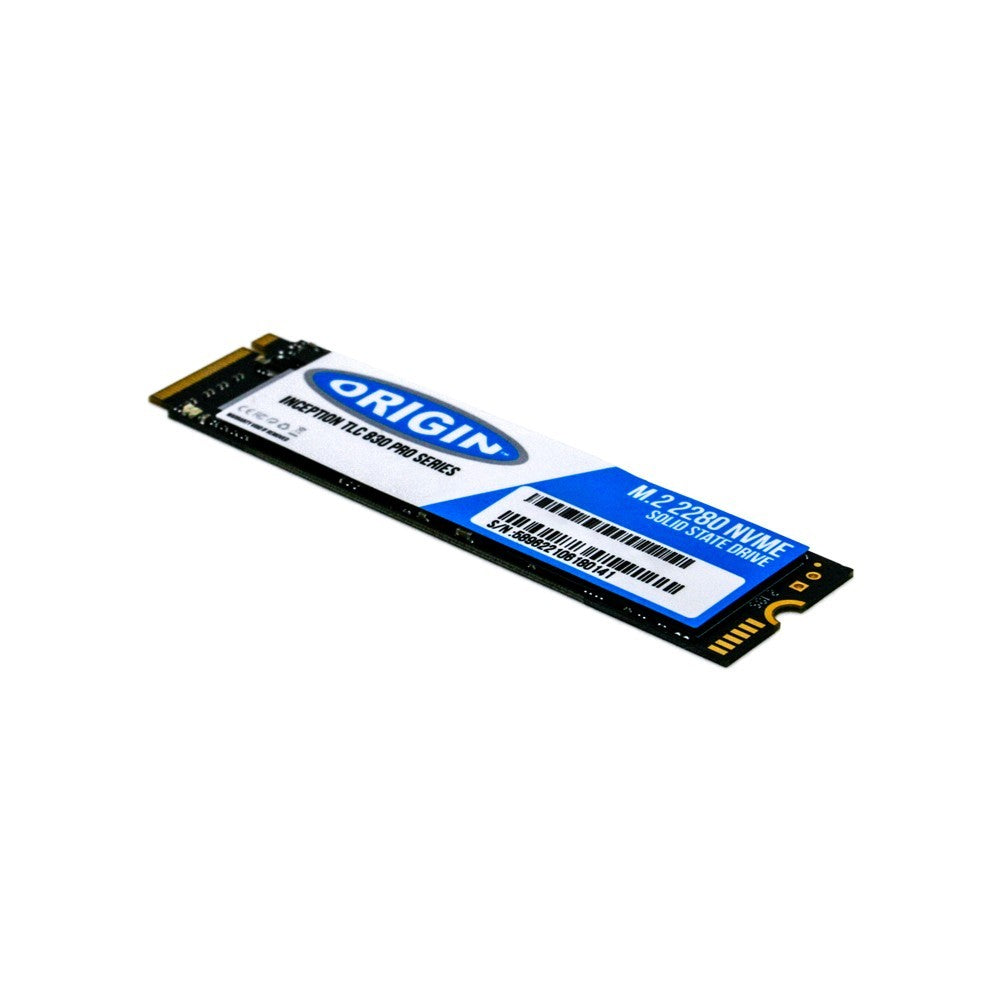

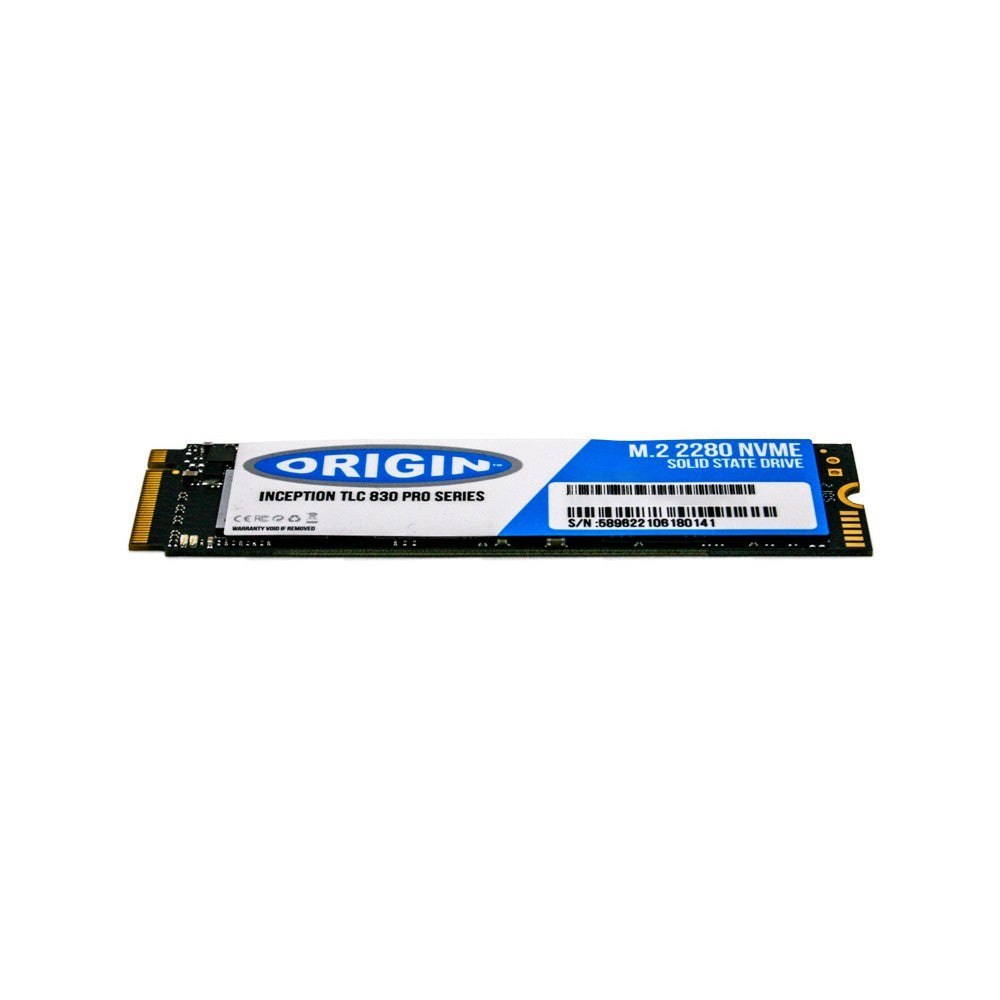

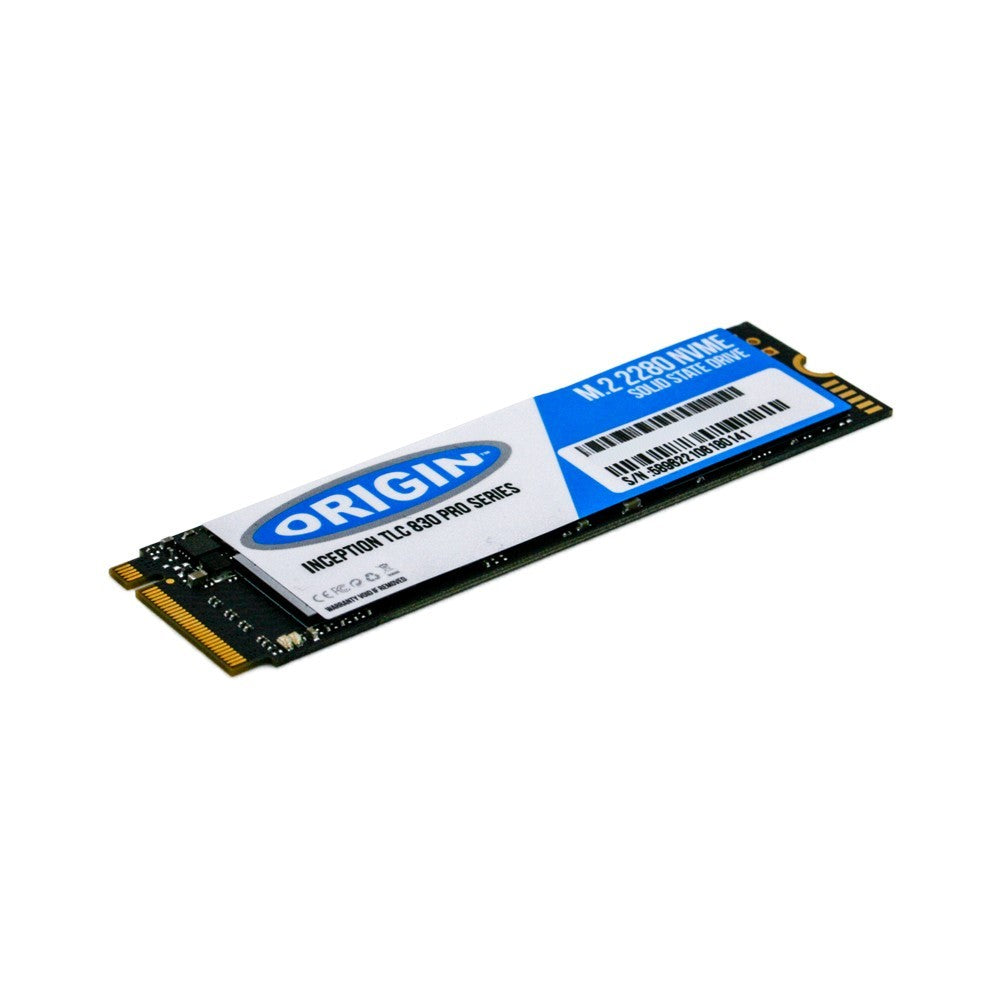

Origin Storage Inception TLC830 Pro Series 120GB-1TB M.2 PCIe 4 NVME 3D TLC SSD
Origin Storage Inception TLC830 Pro Series 120GB-1TB M.2 PCIe 4 NVME 3D TLC SSD
Regular price
£36.34 GBP
Regular price
Sale price
£36.34 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The Origin Storage Inception TLC830 Pro Series 120GB-1TB M.2 PCIe 4 NVMe 3D TLC SSD is a high-performance internal SSD designed for use in computers and laptops. With a read speed of 2100 MB/s and a write speed of 1900 MB/s, this SSD offers fast data transfer rates. It features a capacity of 120GB-1TB and is backed by a manufacturer warranty of 3 years. The M.2 interface and NVMe technology ensure reliable performance, making it a reliable choice for those looking to upgrade their storage capabilities.
Features
NVMe version
2.0
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
128-bit AES, 256-bit AES
SSD capacity
The Solid State Drive's data storage capacity.
1 TB
SSD form factor
The size of the solid-state drive, given in inches
M.2
Interface
Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.
PCI Express 4.0
NVMe
NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.
Memory type
Type of memory in the device e.g. DDR3, SRAM (Static RAM).
3D TLC
Component for
What this product is used as a part of (component for).
PC/Laptop
Hardware encryption
M.2 SSD size
2280 (22 x 80 mm)
Read speed
The speed at which a device can read data.
5100 MB/s
Write speed
The speed at which a device can write data.
4400 MB/s
Random read (4KB)
4000 IOPS
Random write (4KB)
3200 IOPS
Access time
0.2 ms
Seek time
Time necessary to find data on medium.
0 ms
M.2 key ID
M
PCI Express interface data lanes
x4
S.M.A.R.T. support
TRIM support
ECC
ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.
JEDEC standard
End-to-End Data Protection
Features
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
1500000 h
Windows operating systems supported
Windows vesions wich can be used with the device.
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
TBW rating
560
Use conditions
PC/Client/Tablet, Workstation
SSD usage tag
Consumer
Power
Operating voltage
Defines the range of operating voltages available
3.3 V
Average power consumption (read)
3.5 W
Average power consumption (write)
3.5 W
Weight & dimensions
Width
The measurement or extent of something from side to side.
22 mm
Depth
The distance from the front to the back of something.
80 mm
Height
The measurement of the product from head to foot or from base to top.
2 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
6.5 g
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 70 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-45 - 95 °C
Operating relative humidity (H-H)
5 - 98%
Operating vibration
Environmental requirements for vibration in operating mode
15 G
Operating shock
Environmental requirements for optimal protection from impact in operating mode
1500 G
Other features
Compliance certificates
RoHS
Logistics data
Export Control Classification Number (ECCN)
4A994
